Set up real-time replication tasks with the SAP Web IDE and SAP Smart Data Integration

The SAP Web IDE provides so-called replication tasks to set up real-time replication. It provides a graphical UI to browse tables in your connected source systems, create virtual tables, create subscriptions for real-time replication, create data load partitioning strategies, and more. The replication tasks in Web IDE are part of the SAP Smart Data Integration (SDI) toolset, which comes integrated with the SAP HANA platform, both on-premise and in the cloud.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

However, getting started with replication tasks in the Web IDE can be a bit of a hassle, as you have to work your way through configuring a Web IDE project with service connections to HANA, hdbgrant and yaml files. Therefore, I’d like to share this little setup that I recently made. Once you finished the steps in this blog post, the rest becomes a lot easier.

In a previous blog post I described how to set up real-time replication using SAP Smart Data Integration (SDI), up until the database or SQL level. That level allows you to basically leverage all SDI functionality, purely using SQL commands. But there’s benefits in using the Web IDE on top of that, with an easy to use UI, code generation, and all other things the Web IDE have to offer. In this blog post, I build on the SQL example using the Web IDE. The data source could have been any other database that SDI supports for real-time replication.

Pre-requisites


◉ An SAP HANA database (this tutorial uses HANA Cloud);

◉ The Full-Stack Web IDE if you’re running Cloud, or the HANA Web IDE on top of XS Advanced if you’re running on-prem;

◉ The SAP SDI Data Provisioning Agent (this tutorial uses version 2.5.1.2);

◉ Connection set up between HANA and the SDI Data Provisioning Agent;

◉ A source system connected with SDI to HANA. I’ve used MSSQL as configured in the previous blog post, but SDI supports many other sources for real-time replication. You can also use the target HANA system itself as a source and set up HANA trigger-based replication, if it’s just for play.

Create a user in HANA for the User Provided Service


A User Provided Service will be created in the next step, but first we need to create a user on the HANA database that this service can leverage. The user that we create should have the privilege to grant access to create virtual tables, create remote subscriptions, and to process remote subscriptions.

DROP USER cups_mssql_remote_source;
CREATE USER cups_mssql_remote_source PASSWORD "<password>" NO FORCE_FIRST_PASSWORD_CHANGE;
ALTER USER cups_mssql_remote_source DISABLE PASSWORD LIFETIME;
GRANT CREATE VIRTUAL TABLE ON REMOTE SOURCE "RS_MSSQL" TO cups_mssql_remote_source WITH GRANT OPTION; --needed for object owner and reptask editor to browse remote source
GRANT ALTER ON REMOTE SOURCE "RS_MSSQL" TO cups_mssql_remote_source WITH GRANT OPTION; --needed for reptask editor to browse remote source
GRANT CREATE REMOTE SUBSCRIPTION ON REMOTE SOURCE "RS_MSSQL" TO cups_mssql_remote_source WITH GRANT OPTION;
GRANT PROCESS REMOTE SUBSCRIPTION EXCEPTION ON REMOTE SOURCE "RS_MSSQL" TO cups_mssql_remote_source WITH GRANT OPTION;

Now that this preparation is complete, it’s time to create the Web IDE project.

Create a Web IDE project for a HANA Database


No need to explain in detail: from the Web IDE, create a project using the SAP HANA Database template.

Create a User Provided Service


The User Provided Service is needed to provide privileges to the Web IDE project, or rather, to the HANA Deployment Infrastructure (HDI) container that we will create.

Creating a user provided service can be done from the Web IDE.  When creating the service, make sure to include the certificate as described in the SAP Help. Make sure to put in the password and the right host and API endpoint of the HANA database. If you are configuring an on-prem HANA database, you can leave out the endpoint, encrypt and certificate tags.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 1: Add HANA service connection to Web IDE project

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 2: Configure the service connection

Below the json definition of the service is displayed, which can also be used to create the service from the XSA or CF command line or the SCP Admin UI instead of from the Web IDE.

{
    "host": "<database-id>.hana.prod-eu20.hanacloud.ondemand.com",
    "port": "443",
    "user": "cups_mssql_remote_source",
    "password": "<password>",
    "driver": "com.sap.db.jdbc.Driver",
    "tags": [
        "hana"
    ],
    "endpoint": "https://api.cf.eu20.hana.ondemand.com",
    "encrypt": true,
    "certificate": "-----BEGIN CERTIFICATE-----\nMIIDrzCCApegAwIBAgIQCDvgVpBCRrGhdWrJWZHHSjANBgkqhkiG9w0BAQUFADBh\nMQswCQYDVQQGEwJVUzEVMBMGA1UEChMMRGlnaUNlcnQgSW5jMRkwFwYDVQQLExB3\nd3cuZGlnaWNlcnQuY29tMSAwHgYDVQQDExdEaWdpQ2VydCBHbG9iYWwgUm9vdCBD\nQTAeFw0wNjExMTAwMDAwMDBaFw0zMTExMTAwMDAwMDBaMGExCzAJBgNVBAYTAlVT\nMRUwEwYDVQQKEwxEaWdpQ2VydCBJbmMxGTAXBgNVBAsTEHd3dy5kaWdpY2VydC5j\nb20xIDAeBgNVBAMTF0RpZ2lDZXJ0IEdsb2JhbCBSb290IENBMIIBIjANBgkqhkiG\n9w0BAQEFAAOCAQ8AMIIBCgKCAQEA4jvhEXLeqKTTo1eqUKKPC3eQyaKl7hLOllsB\nCSDMAZOnTjC3U/dDxGkAV53ijSLdhwZAAIEJzs4bg7/fzTtxRuLWZscFs3YnFo97\nnh6Vfe63SKMI2tavegw5BmV/Sl0fvBf4q77uKNd0f3p4mVmFaG5cIzJLv07A6Fpt\n43C/dxC//AH2hdmoRBBYMql1GNXRor5H4idq9Joz+EkIYIvUX7Q6hL+hqkpMfT7P\nT19sdl6gSzeRntwi5m3OFBqOasv+zbMUZBfHWymeMr/y7vrTC0LUq7dBMtoM1O/4\ngdW7jVg/tRvoSSiicNoxBN33shbyTApOB6jtSj1etX+jkMOvJwIDAQABo2MwYTAO\nBgNVHQ8BAf8EBAMCAYYwDwYDVR0TAQH/BAUwAwEB/zAdBgNVHQ4EFgQUA95QNVbR\nTLtm8KPiGxvDl7I90VUwHwYDVR0jBBgwFoAUA95QNVbRTLtm8KPiGxvDl7I90VUw\nDQYJKoZIhvcNAQEFBQADggEBAMucN6pIExIK+t1EnE9SsPTfrgT1eXkIoyQY/Esr\nhMAtudXH/vTBH1jLuG2cenTnmCmrEbXjcKChzUyImZOMkXDiqw8cvpOp/2PV5Adg\n06O/nVsJ8dWO41P0jmP6P6fbtGbfYmbW0W5BjfIttep3Sp+dWOIrWcBAI+0tKIJF\nPnlUkiaY4IBIqDfv8NZ5YBberOgOzW6sRBc4L0na4UU+Krk2U886UAb3LujEV0ls\nYSEY1QSteDwsOoBrp+uvFRTp2InBuThs4pFsiv9kuXclVzDAGySj4dzp30d8tbQk\nCAUw7C29C79Fv1C5qfPrmAESrciIxpg0X40KPMbp1ZWVbd4=\n-----END CERTIFICATE-----"
}

Below you see the yaml file, where the green rectangles mark the changes that were automatically made by the Web IDE as part of the service creation. If you have created the service otherwise, then you will have to make such adjustment to the yaml file yourself. Of course, you are free to choose more suitable names than the ones generated by the Web IDE.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 3: automatic YAML file adjustments for created service connection

Hdbgrants file


The HDI container owner and runtime users need privileges on the remote source to be able to browse remote tables, create virtual tables, and create remote subscriptions. These are provided by the grantor service, but the privileges also need to be requested in the hdbgrants file.

The object owner needs the following privileges:

◉ CREATE VIRTUAL TABLE, CREATE REMOTE SUBSCRIPTION on the remote source. That’s easily explained as the HDI container owner simply needs to be able to create those two object types for that remote source.

The application user need the following privileges:

◉ CREATE VIRTUAL TABLE: this one is needed for the replication task editor to be able to browse the remote source

◉ PROCESS REMOTE SUBSCRIPTION EXCEPTION: this one is needed for the runtime user to process remote exceptions if they occur (e.g. if a truncate operation is performed in the source and it’s not supported by the SDI adapter, you need to clean things up and ignore that exception).

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 4: hdbgrants file for requesting privileges from HANA

After that’s done, build the db folder, and then a replication task can be created.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 5: create replication task

We navigate to the remote tables that needs to be replicated, and select “initial + realtime” so that an initial load is done, after which replication is turned on. As you can see, you can also choose to skip the initial load, just create a virtual table, or only do an initial load, or choose any other option.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 6: configure replication task

You can see in the database explorer that two tables are created: a virtual table and a persistent table. The latter one is not filled yet, as the initial load has not run yet.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 7: virtual table query result

For executing the initial load and starting the subscription, a procedure is generated that simply needs to be called. If you had created multiple subscriptions for multiple source tables, this would load and start them all.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 8: procedure to kickstart initial load and replication

After running the procedure, you can see that the persistent table received the initial load.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material


Figure 9: data preview of the persistent table

So now let’s see if a record that is newly inserted in the source database, is replicated to HANA.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

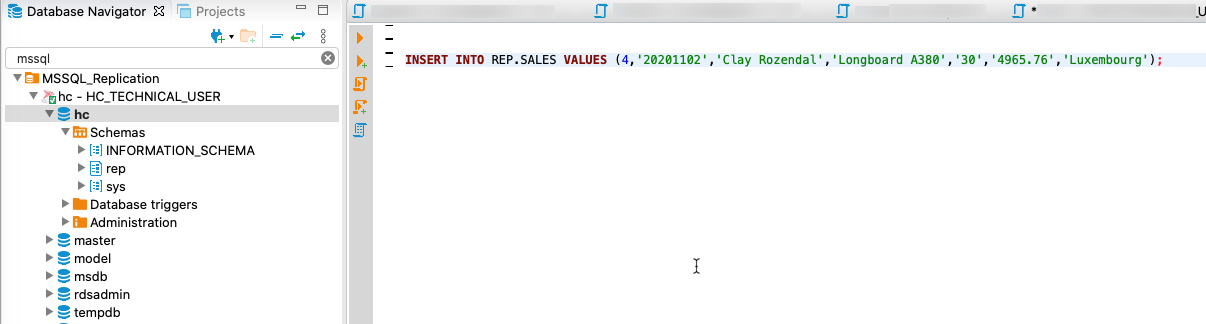

Figure 10: add record to source database

And yes, there it is.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

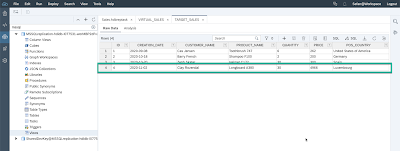

Figure 11: result

The replication task provides a lot more options than the simple 1-on-1 replication than was set up in this blog post. For example, you can turn on full history tracking of all source record changes simply by choosing Load Behaviour “Preserve all”.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 12: preserve all

If that’s turned on, let’s see what happens when we update a record in the source db.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 13: preserve all

Now you can see that the entire change history is recorded, including change type (insert, update, delete) and when this happened.

SAP HANA Exam Prep, SAP HANA Certification, SAP HANA Guides, SAP HAN Prep, SAP HANA Study Material

Figure 14: preserve all
