Implementing View-based SSCUI in SAP S/4HANA Cloud

In this blog post, I will share my understanding and knowledge about SSCUI development steps.

What is SSCUI?


SSCUI stands for Self-Service Configuration User Interface.

If you have ever dealt with SAP S/4HANA On-Premise, you would probably know all the customizing and configuration is done using IMG Activities in SPRO. However, when we come into SAP S/4HANA Cloud, there is no access to SPRO for customers to configure and customize their solution. So, there needs to be some different approach in the cloud to achieve this goal. This approach is nothing but SSCUI.

There are various types of SSCUI. They are:

i. View
ii. View Cluster
iii. Individual transaction object
iv. Table
v. Logical transport object
vi. Dummy object

In this blog post I will be talking only about creating a WebGUI SSCUI using a View.

While creating SSCUI you can divide your tasks into four parts. They are

◉ Feasibility check
◉ Authorization part
◉ Configuration part
◉ Testing part

Now we are starting with the steps one-by-one. First comes the “Feasibility Check”.

Feasibility Check:


Before you start your actual implementation of SSCUI you need to perform 10 feasibility check. They are as follows:

1. Transportable:

We must perform this to check the IMG activity is automatically transportable to P-system. If not, then separate maintenance in Q and P system and no transport of current settings from Q2P. To check we must run the report /SMB98/JF01 in SE38 using IMG activity.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

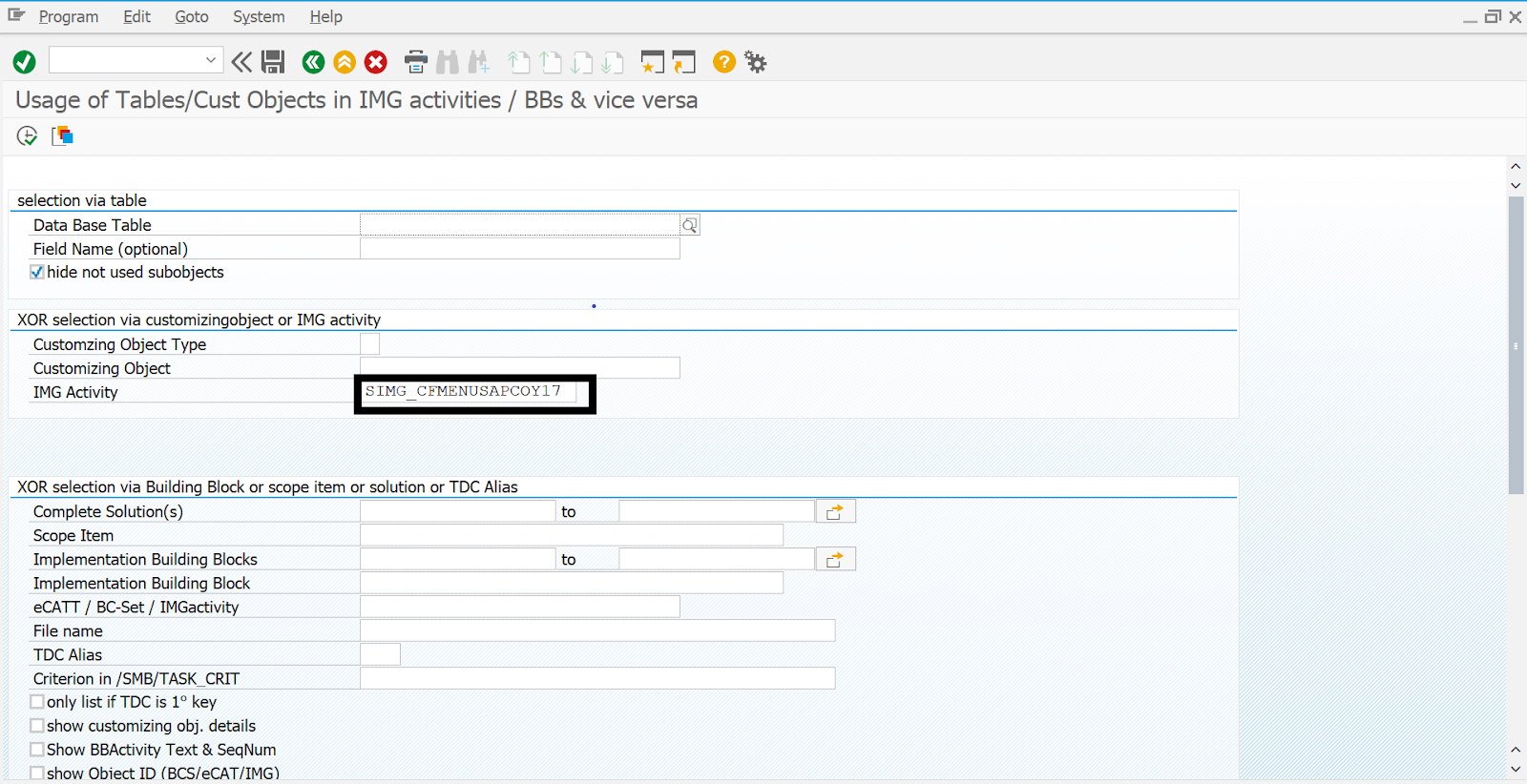

Fig 1: Initial screen of the report /SMB98/JF01

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 2: IMG specific feasibility screen

Under our IMG Activity name find the highlighted part.

◉ Green V means that the object is View
◉ Green CUST means that the object is customizing object
◉ Green 2 means that there are automatic transports
◉ Green blank means that the maintenance is not allowed directly into production

2. Content:

To check whether SAP best practice content exists for the IMG activity. IMG Web GUI can also be created without content for certain reason.

Execute the report /SMB98/JF01 in SE38 using IMG activity ID.

Example: Refer the above figure 2.

Building Block: To identify from where the content of the IMG Activity comes.

If the content exists, then the building block ID is shown:

◉ Yellow block J90 (XX) means that the recording is in Solution Builder is of type IMG Activity.
◉ If it was orange, then it would be BC-Set and
◉ If it was blue, then it would be eCATT

3. Record IMG:

◉ Recording type should be IMG and there must be no eCATT’s.
◉ In our example from the figure 2 it is yellow, so it is IMG.
◉ For eCATT run the report /SMB98/JF05 in SE38 using IMG Activity ID and copy the object identification value and paste it in the view /SMB98/DDUSGBB.
◉ In the view /SMB98/DDUSGBB check the field object type for the corresponding object identification, if it is type IMG which means it is recordable at least for the table or view that is used in the building block activity.

4. Auto Compliance:

It will help us to check if there are any Lifecycle Incompatibility Patterns (LIPs).

Run the report /SMB98/JF05 in SE38 using IMG Activity ID.

The below is the example of successful case:

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 3: LIP screen specific to IMG activity

5. Manual Compliance:

In addition to LIPs, some LIPs must be checked manually. If any of the manual checks fails, then the SSCUI will not work from content lifecycle point of view.

Check the above figure 3 and if any error comes up, contact your Build expert.

6. API Restrictions:

If the customer uses the same namespace which is like the targeted IMG namespace then it may cause an issue. This can be avoided by following ways:

◉ In case of G and E tables customer should be using the namespace as defined in the DDIC. The chances of conflicts are very less.
◉ If the configuration ID is fully referenced in the best practice content.
◉ In case when the above two options are not available then there are reserved ID’s for customers to use. Namespace restriction is applied on the key fields in the application. The customers can create entries other than standard SAP best practice content namespace.

S, Q, R, X, P, Y for character fields

5, 6, 7, 8, 9, 0 for numeric fields

If the user makes a wrong entry, then API will return an error.

7. Country:

◉ If the Fiori SSCUI exists which has country dependent records, then Web GUI SSCUI cannot be built. The Fiori SSCUI must be turned off first.
◉ Run the report from TA: /n/SMB98/JF05 using IMG Activity.
◉ From the above figure 3, check the yellow part under the view V_005_B, if Fiori SSCUI exists then it will indicate that Cust. Obj is used in Fiori SSCUI.

8. Simple:

◉ IMG Activity allows creation of records deemed as complex. The SSCUI should offer only simple variation to what is already designed in the pre-configured process.
◉ Run the TA: /n/SMB98/JF08 using IMG Activity.
You will see the result as below:

Here it is used by,

328 Application tables

5513 Configuration tables

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 4: Complexity analysis screen

The result looks more complex however it requires Build Expert to further validate by executing process in the impacted areas.

9. Rules OK:

This check is used to ensure that the content simplification rules are followed. This check is made by the Build Expert to ensure that it must not allow the customers to break the simplification rules.

10. Customizing objects containing non-C-/G- tables:

In general, this check is used to ensure that the object is a customizing object and the best practice content is delivered by SAP.

Next comes the authorization part.

Authorizations:


The important part is authorization. Run the TA: SIAM with SU22 details and customizing details.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 5: SIAM initial screen

The result will show whether it is whitelisted or not.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 6: SIAM resultant screen

The final check can be done when the transaction is included in the Business Catalog. To maintain business catalog role authorization, contact your IAM expert. The IAM is responsible for creating and delivery the Business Catalog.

Now we come to the actual implementation part.

Implementation / Configuration:


The grouping of meta data must be made in set of transactions in ER9 001 / ER6 001.

Before in hand we must know the Application area, Sub application area and SSC app name under which our SSCUI will be placed. Mostly we will be placing our SSCUI under the existing Application area, sub application area and SSC App.
  • Run the TA: SM34 with View Cluster as /CFG/WEBGUI_DETAILS
    • Internal GUID: Auto generated
    • IMG Activity: Your IMG Activity ID
    • Customizing object: The customizing object from solution builder
    • Type: The type of the customizing object. Most often it will be a View
    • WEBGUI External ID: This must be maintained centrally.
    • Country Dependent: If the SSCUI is country dependent or for Global. Mostly it will be global which indicates that it is applicable for all countries.
      • Global: configuration is identical for all countries
      • Country dependent: The SSCUI contains information specific to a country
      • Localized: The SSCUI is relevant only for one country
  • Sequential Number: Not required at this moment
  • Transaction Code: This is the unique transaction code for your IMG Activity. You can find it in the table CUS_IMGACH using your IMG Activity
  • Preset: Don’t check the check box. Only checked for special SSCUI that are used before the content is activated in the Q system
  • Evaluate: Check the checkbox to make IMG Activity available in the starter system during explore phase
  • Realize: Check the check box to make the IMG Activity available in Q-system and P-System during realize phase
  • Deploy: Check the check box to make the IMG Activity available in Q-system and P-System during deploy phase
  • Run: Check the check box to make the IMG Activity available in Q-system and P-System during run phase
  • Dis newQ2P: Disable for new Q2P
  • Dis oldQ2P: Disable for old Q2P
  • Is Required: This has no impact on the application logic
    • Mandatory: there are no meaningful default value in the content
    • Recommended: there is default content for mandatory /core scope items
    • Optional: there are meaningful defaults
  • App ID: Application area ID
  • Transport relevant: normally set “In Q”. If this is current settings, then set it to “In Q and P”. Ignore other values from the dropdown list
  • Availability to Cust:
    • Released: has passed testing and is available to customers
    • Not released: has not passed testing but available to customers
    • Deprecated: is available for old customers and not for new customers
Configuration of SSC App:

You can create a new SSC App and assign the SSCUI. But each SSC App must have at least 3 SSCUI. Or you can push your SSCUI under an existing SSC App.

To create a new SSC App run the TA: /CGG/VC_SSC and create a new entry:

◉ SSC ID: auto generated
◉ Category: Mostly F Configuration Item
◉ SSC App name: Provide the name in English.
◉ ID: Make use of the drop-down list to choose from the available Application area
◉ Sub App ID: Make use of the drop-down list to choose from the available Sub-Application area
◉ Ext ID: This must be maintained centrally.
◉ SSC App Documentation Link: run the TA: SE61 and create a new documentation. For technical name of the document use SIMG_SSCUI_<external_ID>. Prefix it with SIMG as SIMGSIMG_SSCUI_<external_ID>
◉ MR flag: do not check the check box

Once the SSC APP is ready in place, we can place our SSCUI under it. Select the SSC App line item and double click on Self-Service Configuration Item hierarchy.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 7: Configuration hierarchy screen

To add your SSCUI follow the steps below:

◉ Assigned SSCUI ID: your internal GUID from /CFG/WEBGUI_DETAILS
◉ Step name: automatically detected when you enter the assigned SSCUI ID
◉ SSC App default sequence / Step default sequence: A number specifies the sequence of our SSCUI under the SSC App.

Well set, the configurations are completed. Next comes the testing part.

Testing of SSCUI:


SSCUI must be tested in the S/4 Cloud testing systems.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 8: Test system UI screen

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 9: Manage solution App screen

If you can’t find your SSCUI then you can raise a ticket. Before raising a ticket check the below points:

◉ Check the complete configurations in /n/SMB98/SSCUI
◉ Use the TA: /n/FTI/INCDNT_MANAGER using IMG Activity, Object type, Customizing Object and Transaction code and check for configurations. Not all points are important. You can contact your Build Expert to decide on this.

SAP HANA Exam Prep, SAP HANA Guides, SAP HANA Learning, SAP HANA Certification, SAP HANA Tutorial and Material

Fig 10: Testing SSCUI points
