Access SAP HANA records from VS (Visual Studio) Code

So let us begin……

Step 1: Install VS Code extension SAP HANA Driver for SQLTools by navigating to the extensions window and search for publisher:”SAP”. We can see our required extension. Click on the install. Internally it has a dependency extension (SQLTools) which will be installed automatically.

Can also install directly from Market place

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 2:  Once extension has installed successfully, click on the SQL Tools on the left side.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 3 : Now new window will be prompt on the right side where you can see available database drivers. Click on SAPHANA.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 4: Here we need to provide the SAP HANA system details like

1. Connection name – local name to identify
2. Connection Group – can be blank
3. HANA Server – host (Refer below screenshot)
4. Server Port – port (Refer below screenshot)
5. Schema – schema (Refer below screenshot)
6. User name – user (Refer below screenshot)
7. Password – password (Refer below screenshot)
8. Encrypted Connection – Let it default. No changes required
9. SSL Crypto Provider – Let it default. No changes required
10. SSL Trust Store – Let it default. No changes required
11. Validate Server Certificate – Let it default. No changes required
12. Connection Timeout – Let it default. No changes required
13. Show records default limit – Let it default. No changes required

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 5 : Once you enter required SAP HANA System Details click on the SAVE Connection.

Step 6 : Click on the connect then it automatically asks to install the SAP HANA driver (@sap/sap-client). Choose to install.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 7: Once SAP HANA driver (@sap/sap-client) installed successfully then it will be connected to the SAP HANA system and Tables and Views will be loaded.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

Step 8 : Click on the Magnifier icon to view table data and + icon to insert a query.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

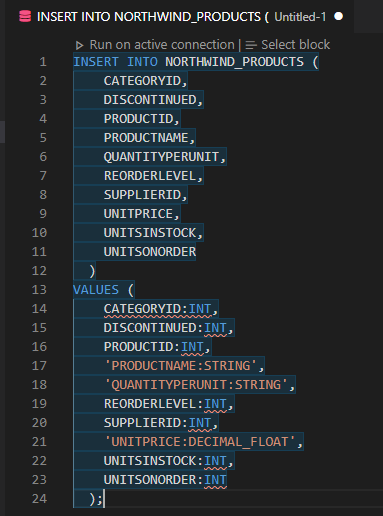

Step 9: Now we can perform CRUD operation from the console.

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

SAP HANA Exam Prep, SAP HANA Learning, SAP HANA Certification

In the same procedure, we can also perform other operations as well.
