Finding this information can be hard, it is often good to refer to a text/static version so I have captured the steps in this blogpost.
The are 6 main parts to connect SAC to HANA Cloud
1. Access the Business Application Studio
2. Hana Analytics Adapter Configuration
3. Create Role Collection
4. Assign Role to Cloud Platform Users
5. Verify Access to InA using Application URLs
6. SAP Analytics Cloud Connection
◉ SAP HANA Cloud with an HDI Container created
◉ SAP Analytics Cloud
◉ Business Application Studio
You need to have both the subscription enabled and the role collections assigned to your user (Trust Configuration: SAP ID Service – Role Collection Assignment).
Full details of how to provision the App Studio the first time can be found here.
With that in place you should then be able to launch App Studio from the subaccount.
Go to Application.
The are 6 main parts to connect SAC to HANA Cloud
1. Access the Business Application Studio
2. Hana Analytics Adapter Configuration
3. Create Role Collection
4. Assign Role to Cloud Platform Users
5. Verify Access to InA using Application URLs
6. SAP Analytics Cloud Connection
Pre-requisites
◉ SAP HANA Cloud with an HDI Container created
◉ SAP Analytics Cloud
◉ Business Application Studio
1. Access the Business Application Studio
You need to have both the subscription enabled and the role collections assigned to your user (Trust Configuration: SAP ID Service – Role Collection Assignment).
Full details of how to provision the App Studio the first time can be found here.
With that in place you should then be able to launch App Studio from the subaccount.
Go to Application.
Login to the Business Application Studio with your Cloud Platform credentials
Create a New Dev Space with the application type as SAP Cloud Business Application
After creating the Dev Space, we can click on the name to enter it.
2. Hana Analytics Adapter Configuration
Now we are inside our space in the Business Application Studio we can configure the HAA (Hana Analytics Adapter). The clever people from the SAP HANA Academy have created an npm we can use.

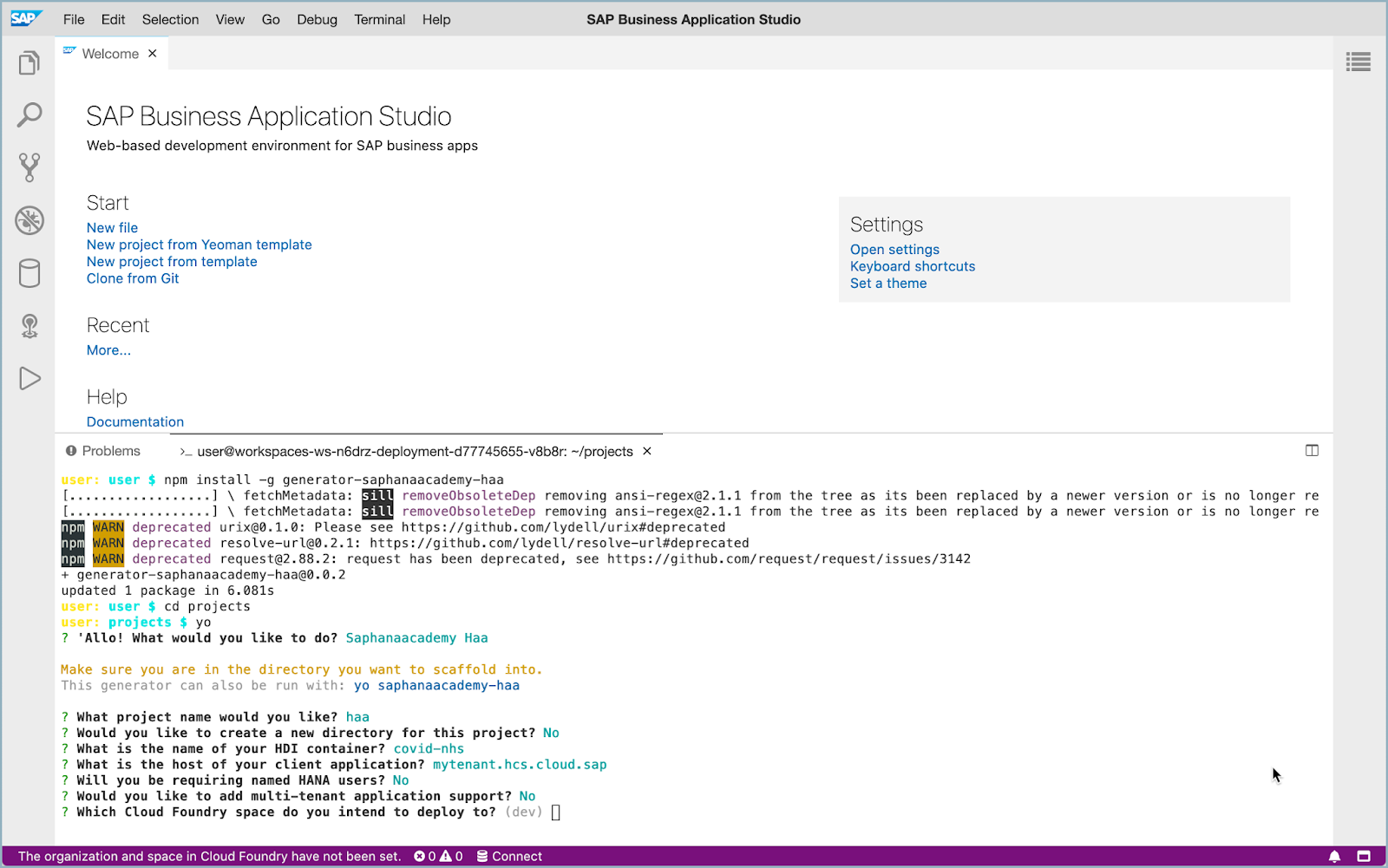

Open a New Terminal
Type the npm install command into the terminal
npm install -g generator-saphanaacademy-haa
Execute the installed package, with yo.
cd projects
yo
? What project name would you like? haa
? Would you like to create a new directory for this project? Yes
## You are binding the HAA to this HDI Container, multiple can be added later if required
? What is the name of your HDI container? covid-nhs
## SAC Tenant name, if you have multiple these can be adjusted in the mta.yaml
? What is the host of your client application? mytenant.hcs.cloud.sap
## Yes = SSO to DB, No = HDI Container user used for DB connection
? Will you be requiring named HANA users? No
? Would you like to add multi-tenant application support? No
## Space name in your SCP sub-account
? Which Cloud Foundry space do you intend to deploy to? dev
Upon completion, open the newly created project.
Current file version is xsahaa-release-1.5.10-release.zip
Extract the downloaded xsahaa-release-1.5.10-release.zip
Drag and drop the file java-xsahaa.war into the project srv/target directory.
We can now select Build MTA on the mta.yaml file
When the build completes check the Task build log shows something similar to below with
BUILD SUCCESS. The log should open automatically.
Once successfully built we should see the MTA archive folder with the .mtar file inside.
We can now select the haa_0.0.1.mtar, right click and choose Deploy MTA Archive
You should be prompted to login to your SCP API Endpoint. Something similar to below. You can then see the organisation and space.
https://api.cf.eu20.hana.ondemand.com
3. Create Role Collection
After successful deployment we will have a 1 new application, 2 new services and 1 new role.
These can be seen in the Cloud Platform Cockpit, Subaccount.
Create a New Role Collection
Click the HAA Access role created.
Add Role to the Role Collection.
4. Assign Role to Cloud Platform Users
Within the Cloud Platform Subaccount we can navigate to Trust Configuration
Type in the users email address that you wish to assign the role to.
Click Show Assignments
Click Assign Role Collection
Select the HAA Access Role Collection
5. Verify Access to InA using Application URLs
We can see our new application URLs, by navigating to the Cloud Platform space Applications
The Base URL (Application Route) is shown after selecting the haa app.
Click the URL to open the base HAA page, no authentication is required yet.
# Heartbeat URL Path
/sap/bc/ina/service/v2/HeartBeat
## GetServerInfo URL Path
/sap/bc/ina/service/v2/GetServerInfo
6. SAP Analytics Cloud Connection
We can now establish a Live Direct connection to HANA Cloud, using the SAP HANA connection option.
