LTMC for Master Data Step by Step Process

When We are Implementing SAP S/4HANA solution, We can migrate our master data and business data from SAP systems or non-SAP systems to SAP S/4HANA. By using  SAP S/4HANA migration cockpit.

The SAP S/4HANA migration cockpit uses migration objects to identify and transfer the relevant data. A migration object describes how to migrate data for a specific business object to SAP S/4HANA. It contains information about the relevant source and target structures, as well as the relationships between these structures. It also contains mapping information for the relevant fields, as well as any rules used to convert values that are migrated from source fields to target fields. SAP provides predefined migration objects that you can use to transfer your data.

The Tool used to perform Migration is LTMC – (Legacy Transfer Migration Cockpit)

You can access the SAP S/4HANA migration cockpit by using transaction LTMC.

Note the following considerations when deciding on the most suitable approach for your project:

Consideration	Files	Staging Tables
Size Limit	200MB limit for SAP S/4HANA Migration Cockpit .*	No Limit.
System Considerations	None.	Staging system uses an SAP HANA database.
Data Provisioning	Enter data manually in each Microsoft Excel XML file.	Fill tables manually or by using preferred tools (for example SAP Agile Data Preparation).

* For on-premise systems, parameter icm/HTTP/max_request_size_KB controls the size of the http request. The value of this parameter is the maximum size (in KB) of an HTTP request. This parameter has the standard value 102400 kb (100MB) but can be changed if required.

Steps to Use LTMC

1. Enter LTMC T.Code

2. LTMC Web page / Fiori App will get opened

3. Click on Create for Starting New Migration Project

4. Provide Project Title & Data Retention Time and hit Create

5. In the Search bar, we can look for an object which we want to use and upload data

6. Select Required Object and click open

It’s just an information  and press ok

7. Click on Download Template so XML file will be downloaded

8. A pre-filled Template with detailed of each field and business is available

9. In Field, List Sheet will find each sheet which and all are mandatory  based on that we will fill data and upload

10. In Basic Data Sheet highlighted column is mandatory and fill the remaining fields and sheets as per requirement.

11. In the last Sheet, “Maintenance Status Settings” Sheet will be activating which screens are required as per business.

12. Once the template is ready with all required data need to follow below Steps

A. Upload File

B. Activate

C. Start Transfer

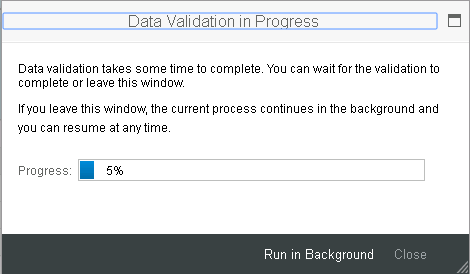

D. Data Validate

E. Convert values

F. Simulate

G. Execute Import

13. Click Activate

14. Click Start Transfer

15. Data will get Transferred once its done Close button will get enabled

16. If any error or data is missing will get error hear if all data in templet is good we can proceed further

17. Click next

18. When we are executing for the first time particular object in a project we need to Map fields.

19. Click  each line item and do Mapping  of Values

20. Select Line Item and Click check once status turns in to Green Light click save so next time system will do the mapping automatically

21. Once all the mapping is completed and no open items click next to simulate Import

22. Similar to upload once its completed click close to proceeding further

23. Backed  Program  will execute and data gets simulated if any missing data of mandatory fields and fields Mapping is wrong

24. If any error go back and fix and  repeat same if no error click Next

25. If all the steps are completed without any error will get above message then click finish.

Migration Status is now Finish

1. Now Check whether Material is created or not

2. Go to Display Material Fiori App and Search with the Material Number which you created

3. Select required Fields

4. Material with all the fields got updated with Screens.
