Create Cumulative figure in HANA Graphical Calculation View

This is a document how you can create a cumulative calculation using HANA Graphical Calculation View. It is one of the easy example, but you can extend it to any complex scenario.

I am creating a Simple file like this and our aim is to create the cumulative column as show bellow.

Product Annual Sales(USD) Cumulative Sum Sales
1070 3600 3600
1050 336 3969
1020 220 4156
1060 192 4348
Step 1: Create a CSV file mention above. The file is already attached in this portal.
Step 2: Consume the CSV file in HANA and create a Table (Table Name: Zt_Sales_001).

Create Cumulative figure in HANA Graphical Calculation View

Step 3: Create a HANA Model / Calculation View name CA_DATA_ CUMULATIVE_001

Create Cumulative figure in HANA Graphical Calculation View

Step 4: Take a projection and consume the table you have created.

Step 5: Create a DUMMY filed with a constant value like ‘1’ (As created in the system)

Create Cumulative figure in HANA Graphical Calculation View

Create Cumulative figure in HANA Graphical Calculation View

Step 6: Then use a Rank Functionality to get the sequence number of the data.

Create Cumulative figure in HANA Graphical Calculation View

Step 7: Divided the flow into 2 different projections, and again join with DUMMY field. You will get M*N number of field.

Create Cumulative figure in HANA Graphical Calculation View

Create Cumulative figure in HANA Graphical Calculation View

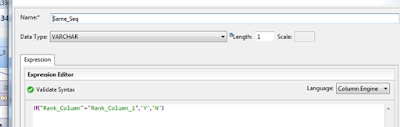

Step 8: Add 2 calculative column create with following logic. One is Equal to sequence and other is Greater than Equally of sequence. Please have the logic.

Create Cumulative figure in HANA Graphical Calculation View

Create Cumulative figure in HANA Graphical Calculation View

Create Cumulative figure in HANA Graphical Calculation View

Step 9: Put a filter with Value ‘Y’ on top of the Sequence Column.

Create Cumulative figure in HANA Graphical Calculation View

Step 10: Put an Aggregation node on top of Projection node (which has the Greater than Equally of sequence filter). Then Do the aggregation on top of total sales column.

Create Cumulative figure in HANA Graphical Calculation View

Step 11: Now Put a Join node and join Projection and aggression node and join on Product field.

Create Cumulative figure in HANA Graphical Calculation View

Step 12: Execute the field and see the output.

Create Cumulative figure in HANA Graphical Calculation View

Source: scn.sap.com
