How to Connect S4HANA Public Cloud With SAP Datasphere

Introduction:


After reading this article you will be able to establish a connection between SAP S4HANA Public Cloud with SAP Datasphere Public Cloud

Benefits:


You will be able to replicate data from S4HANA Public Cloud to SAP Datasphere Public Cloud

Pre-requisites:


S4HANA Public Cloud user should have access to Maintain Communication Users, Communication Systems, Communication Arrangements app.

Steps for Configuration:


◉ Log In to S4 HANA Public Cloud Tenant. Go to My Space

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Search and select the “Maintain Communication Users” app​ from S4HANA Public Cloud

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ "Maintain Communication Users " app will open in S4HANA Public Cloud. Then click on New Button to create New User.

How to Connect S4HANA Public Cloud With SAP Datasphere

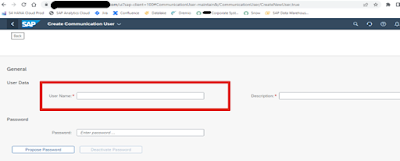

◉ Put the User Name “YY1_USR_DS”

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Put the User Name, Description, and Password as shown below and click “Create”​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Once Communication User is created, a CC* User ID will be generated​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Search and select the “Communication Systems” app and click on “New”​ to create new Communication System.

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Give the System ID created earlier and the Host Name as "DWC"

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Scroll down further and add User for Inbound Connection:​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Search the user that you have created earlier

How to Connect S4HANA Public Cloud With SAP Datasphere

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Search and select the “Communication Arrangements” app and click “New”​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ A pop-up box will appear with the following details

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ In the scenario, search for SAP_COMM_0532 and select it. Once selected give the Communication System which was created​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Once the Communication System is selected, scroll down for Authorization Group ID and select SAP_DPS_ALL​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Scroll down and identify the Inbound Communication and the Inbound Services. Review your inputs and click save.​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Now Log in to DataspherePlatform and click on Space Management -> Connections -> Go To Connections​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Select the Business Name and edit. Give the User Name and Password of Communication User and save​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Select the Business Name and validate. Please note that remote table was disabled as Data Provisioning Agent(DP Agent) was not installed at that time.

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Now click on Data Builder -> New Data Flow​

How to Connect S4HANA Public Cloud With SAP Datasphere

◉ Click on Sources from the Repository-Source option & you will be able to see S4HANA Cloud conneciton that you have created

How to Connect S4HANA Public Cloud With SAP Datasphere

Note: In this article Data Flow scenario is considered. You can also select Communication scenario SAP_COMM_0531 to replicate data via remote table.
