Diving into the HANA DataFrame: Python Integration – Part 1

>>> from math import pi
>>> π = pi
>>> area = π * r**2

>>> résumé = "knows Python"
>>> "Python" in résumé
True

Python is a powerful tool in the Data Scientist’s toolbox. A quick search on LinkedIn will support this hypothesis (if you had any doubts). At SAP we appreciate that Python is not just a nice-to-have, but an expectation for modern technology platforms and from SAP HANA 2.0 (Express Edition Support Package 03, Revision 033), a Python Client API will provide integration for Data Scientist’s to accelerate and enhance their work.

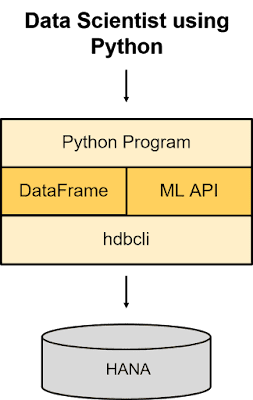

The API makes use of the HANA Python Driver (hdbcli) as shown by this diagram:

SAP HANA Tutorials and Materials, SAP HANA Learning, SAP HANA Certifications, SAP HANA Online Exam

The main two components that a Data Scientist will use are:

1. The SAP HANA DataFrame
2. The Machine Learning API

For the first part of this blog series, I will cover the HANA DataFrame and the second part will cover the Machine Learning API.

The SAP HANA DataFrame

Picture this… you’ve recently set up a team of highly skilled Data Scientists.

◈ 5+ years experience in IT? Check.
◈ Strong research background? Check.
◈ PhD in Astrophysics, Mathematics, Neuroscience etc…? Check. *sigh*.

Great. You’re surely on the path to success. You assign the team a task of building a fraud detection system using a database of 50 billion rows across 10 tables. A robust prototype algorithm must be presented in a months time.

What could go wrong? You have the skills, you have the data… but all too often Data Science is seen as more of an analysis task than a process.

When Data Science is appreciated as a process, performance and deployment are paramount and this is the difference between a “Data Science Project”, and building industrial machine learning.

The biggest performance hurdle comes from the data, and when dealing with the plethora of channels and data sources available… this equates to a LOT of data. When using Python IDE’s such as Jupyter, the data is persisted to the client and this means more processing time, which directly converts into a drop of productivity for your prized unicorns/Data Scientists.

“So how can we avoid this seemingly unavoidable issue? My Data Scientists don’t want to use proprietary tools, they like Python!”

This is where the SAP HANA DataFrame can add real value to a Data Scientist’s work.

What is it?

An SAP HANA DataFrame provides a way to view the data stored in SAP HANA without containing any of the physical data. The Machine Learning API’s make use of an SAP HANA DataFrame as input for training and scoring purposes. An SAP HANA DataFrame hides the underlying SQL statement, providing users with a Python interface to SAP HANA data.

What’s the value?

1. By reducing data transfer, this massively improves productivity and speed. This means faster development cycles, rapid prototyping and more flexibility.

2. No need to re-train or upskill Data Scientist’s with new tools. Use Pythonic syntax that they are comfortable and familiar with.

3. Open-ness. By combining open source packages with the Python API, we are not restricting Data Scientists to use specific tools. We are opening our technology to the Data Science world.

How can I use it?

For detailed instructions on how to set up the Python Client API, see this tutorial. Now, I will give you some details on how to use the API.

◈ To use an SAP HANA DataFrame you must create the “ConnectionContext” object, then use the methods provided in the library for creating an SAP HANA dataframe.

◈ The DataFrame is only usable while the “ConnectionContext” is open, and is inaccessible once the connection is closed.

◈ Let’s open the “ConnectionContext” and invoke a table() method for creating a DataFrame:

# First instantiate the Connection Object (conn)
conn = dataframe.ConnectionContext("IP ADDRESS", "PORT", "USER", "PASSWORD")

# Then create the HANA dataframe (df) and point to the table.
df = conn.table("TABLE", schema="SCHEMA")
df.head(5).collect()

ITEM_IDENTIFIER ITEM_WEIGHT  ITEM_FAT_CONTENT  ITEM_VISIBILITY  ITEM_TYPE  ITEM_MRP
FDA15 9.3 Low Fat 0.016047 Dairy 249.8092
DRC01  5.92  Regular  0.019278  Soft Drinks  48.2692
FDN15  17.5  Low Fat  0.01676  Meat  141.618
FDX07  19.2  Regular  Fruits and Vegetables  182.095
NCD19  8.93  Low Fat  Household  53.8614

OUTLET_IDENTIFIER OUTLET_ESTABLISHMENT_YEAR OUTLET_SIZE ITEM_VISIBILITY  OUTLET_TYPE ITEM_OUTLET_SALES
OUT049 1999 Medium Tier 1 Supermarket Type1 3735.138
OUT018 2009 Medium Tier 3 Supermarket Type2 443.4228
OUT049  1999 Medium Tier 1 Supermarket Type1 2097.27
OUT010 1998  Tier 3 Grocery Store 732.38
OUT013  1987 High Tier 3 Supermarket Type1 994.7052

To understand what is happening behind the scenes, let’s take a look at the SQL that is generated and pushed down to HANA:

-- The first method, head() generates this SQL
SELECT TOP 5 * FROM (SELECT * FROM "SCHEMA"."TABLE") dt

# The second method collect() returns the results in a Pandas DataFrame
return pd.DataFrame(results, columns=self.columns)

1. The first select statement is generated by the head() method.

2. This query is then run by a cursor() and returned with a fetchall() method.

3. The returned results are handled by the collect() method and copied into a Pandas DataFrame, along with the names of the columns.

Now that we have our DataFrame, we have a collection of methods that we can invoke covering 3 capabilities:

1. DataFrame Manipulations: casting columns into a new type, dropping columns, filling null values, joining dataframes, sorting dataframes, renaming columns, etc.

2. Descriptive Functions: statistics relating to the data, showing distinct values, creating DataFrame with top n values, etc.

3. DataFrame Transformations: copying an SAP HANA DataFrame to a Pandas DataFrame and materialize a DataFrame to a table.

Here is an example of how to use a descriptive function on the DataFrame:

# Describe all columns in a DataFrame
df.describe().collect()

column count  unique  nulls   mean
ITEM_WEIGHT  8523 416  10.65059
ITEM_VISIBILITY  8523  7880  0.066132
ITEM_MRP  8523  5938  140.9928
OUTLET_ESTABLISHMENT_YEAR 8523  1997.832
ITEM_OUTLET_SALES   8523  3493  2181.289

std min unique  median 25_percent_cont
6.431899 0 416  11 6.65
0.051598 7880  0.053931 0.026989
62.27507 31.29 5938  143.0128 93.8265
8.37176 1985 2009 1999 1987
1706.5 33.29 13086.96 1794.331 834.2474

25_percent_disc 50_percent_cont 50_percent_disc 75_percent_cont 75_percent_disc
6.65 11 11 16 16
0.026986 0.053931 0.053931 0.094585 0.094603
93.8094 143.0128 143.0128 185.6437 185.6608
1987 1999 1999 2004 2004
833.5816 1794.331 1794.331 3101.296 3101.296

Once again, let’s take a look at the SQL that is generated and pushed down to HANA (this example shows the SQL just for numeric columns):

-- First some simple statistics are calculated
SELECT 'ITEM_WEIGHT' AS "column",
COUNT("ITEM_WEIGHT") AS "count",
COUNT(DISTINCT "ITEM_WEIGHT") AS "unique",
SUM(CASE WHEN "ITEM_WEIGHT" IS NULL THEN 1 ELSE 0 END) AS "nulls",
AVG("ITEM_WEIGHT") AS "mean",
STDDEV("ITEM_WEIGHT") AS "std",
MIN("ITEM_WEIGHT") AS "min",
MAX("ITEM_WEIGHT") AS "max",
MEDIAN("ITEM_WEIGHT") AS "median" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0"
UNION ALL SELECT 'ITEM_VISIBILITY' AS "column",
COUNT("ITEM_VISIBILITY") AS "count",
COUNT(DISTINCT "ITEM_VISIBILITY") AS "unique",
SUM(CASE WHEN "ITEM_VISIBILITY" IS NULL THEN 1 ELSE 0 END) AS "nulls",
AVG("ITEM_VISIBILITY") AS "mean",
STDDEV("ITEM_VISIBILITY") AS "std",
MIN("ITEM_VISIBILITY") AS "min",
MAX("ITEM_VISIBILITY") AS "max",
MEDIAN("ITEM_VISIBILITY") AS "median" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0"
UNION ALL SELECT 'ITEM_MRP' AS "column",
COUNT("ITEM_MRP") AS "count",
COUNT(DISTINCT "ITEM_MRP") AS "unique",
SUM(CASE WHEN "ITEM_MRP" IS NULL THEN 1 ELSE 0 END) AS "nulls",
AVG("ITEM_MRP") AS "mean",
STDDEV("ITEM_MRP") AS "std",
MIN("ITEM_MRP") AS "min",
MAX("ITEM_MRP") AS "max",
MEDIAN("ITEM_MRP") AS "median" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0"
UNION ALL SELECT 'OUTLET_ESTABLISHMENT_YEAR' AS "column",
COUNT("OUTLET_ESTABLISHMENT_YEAR") AS "count",
COUNT(DISTINCT "OUTLET_ESTABLISHMENT_YEAR") AS "unique",
SUM(CASE WHEN "OUTLET_ESTABLISHMENT_YEAR" IS NULL THEN 1 ELSE 0 END) AS "nulls",
AVG("OUTLET_ESTABLISHMENT_YEAR") AS "mean",
STDDEV("OUTLET_ESTABLISHMENT_YEAR") AS "std",
MIN("OUTLET_ESTABLISHMENT_YEAR") AS "min",
MAX("OUTLET_ESTABLISHMENT_YEAR") AS "max",
MEDIAN("OUTLET_ESTABLISHMENT_YEAR") AS "median" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0"
UNION ALL SELECT 'ITEM_OUTLET_SALES' AS "column",
COUNT("ITEM_OUTLET_SALES") AS "count",
COUNT(DISTINCT "ITEM_OUTLET_SALES") AS "unique",
SUM(CASE WHEN "ITEM_OUTLET_SALES" IS NULL THEN 1 ELSE 0 END) AS "nulls",
AVG("ITEM_OUTLET_SALES") AS "mean",
STDDEV("ITEM_OUTLET_SALES") AS "std",
MIN("ITEM_OUTLET_SALES") AS "min",
MAX("ITEM_OUTLET_SALES") AS "max",
MEDIAN("ITEM_OUTLET_SALES") AS "median" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0";
-- Second, percentiles are calculated
SELECT 'ITEM_WEIGHT' as "column",
* FROM (SELECT percentile_cont(0.25) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "25_percent_cont",
percentile_disc(0.25) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "25_percent_disc",
percentile_cont(0.50) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "50_percent_cont",
percentile_disc(0.50) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "50_percent_disc",
percentile_cont(0.75) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "75_percent_cont",
percentile_disc(0.75) WITHIN GROUP (ORDER BY "ITEM_WEIGHT") AS "75_percent_disc" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0")
UNION ALL SELECT 'ITEM_VISIBILITY' as "column",
* FROM (SELECT percentile_cont(0.25) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "25_percent_cont",
percentile_disc(0.25) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "25_percent_disc",
percentile_cont(0.50) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "50_percent_cont",
percentile_disc(0.50) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "50_percent_disc",
percentile_cont(0.75) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "75_percent_cont",
percentile_disc(0.75) WITHIN GROUP (ORDER BY "ITEM_VISIBILITY") AS "75_percent_disc" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0")
UNION ALL SELECT 'ITEM_MRP' as "column",
* FROM (SELECT percentile_cont(0.25) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "25_percent_cont",
percentile_disc(0.25) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "25_percent_disc",
percentile_cont(0.50) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "50_percent_cont",
percentile_disc(0.50) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "50_percent_disc",
percentile_cont(0.75) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "75_percent_cont",
percentile_disc(0.75) WITHIN GROUP (ORDER BY "ITEM_MRP") AS "75_percent_disc" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0")
UNION ALL SELECT 'OUTLET_ESTABLISHMENT_YEAR' as "column",
* FROM (SELECT percentile_cont(0.25) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "25_percent_cont",
percentile_disc(0.25) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "25_percent_disc",
percentile_cont(0.50) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "50_percent_cont",
percentile_disc(0.50) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "50_percent_disc",
percentile_cont(0.75) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "75_percent_cont",
percentile_disc(0.75) WITHIN GROUP (ORDER BY "OUTLET_ESTABLISHMENT_YEAR") AS "75_percent_disc" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0")
UNION ALL SELECT 'ITEM_OUTLET_SALES' as "column",
* FROM (SELECT percentile_cont(0.25) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "25_percent_cont",
percentile_disc(0.25) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "25_percent_disc",
percentile_cont(0.50) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "50_percent_cont",
percentile_disc(0.50) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "50_percent_disc",
percentile_cont(0.75) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "75_percent_cont",
percentile_disc(0.75) WITHIN GROUP (ORDER BY "ITEM_OUTLET_SALES") AS "75_percent_disc" FROM (SELECT * FROM "SCHEMA"."TABLE") AS "DT_0");

1. The first statement generates basic statistics for the columns.

2. The second statement generates 25, 50 and 75 percentile calculations for each column.

3. Finally, both statements are assigned an alias and called in a final select statement, bringing the results together into one table.

If you wish to view the generated SQL without using the collect method, you can issue the following statement:

# This will return the SQL statement for the describe method
df.describe().select_statement
