In the article Introduction to SAP HANA XS we explained the basic overview of SAP HANA XS. In this article we will focus on a specific feature of HANA XS – HTTP Destination.
Introduction:
Suppose there is a service running on a different server and you want to access the data from HANA XS application.
This can be achieved by using HTTP destination and XSJS Outbound API.
Introduction:
Suppose there is a service running on a different server and you want to access the data from HANA XS application.
This can be achieved by using HTTP destination and XSJS Outbound API.
Example:
There is a financial service by Yahoo on Internet (download.finance.yahoo.com) which latest value of a share price.
You can pass the company name as a parameter and get the latest share price. For example to get the share price of SAP, we can use below service:
http://download.finance.yahoo.com/d/quotes.csv?f=a&s=SAP
Now, suppose we want to call this service from HANA XS application and save the latest share value in a HANA table. We can do that by using HTTP destination.
- We first need to create an HTTP destination file
- In HTTP destination file we specify the service host, port, authentication type and other security details.
For example:
host = "download.finance.yahoo.com";
port = 80;
description = "my stock-price checker";
useSSL = false;
pathPrefix = "/d/quotes.csv?f=a";
authType = none;
useProxy = false;
proxyHost = "";
proxyPort = 0;
timeout = 0;
3. We can use this HTTP destination to call the external resource directly from an XSJS application.
Now let us create a complete application to read data from this yahoo financial service and get the value of SAP share price.
Prerequisites:
- You have access to a HANA system
- You have all the role and privileges required
- You have role sap.hana.xs.admin.roles:: HTTPDestViewer assigned to your user
- You know how to Create Your First HANA XS Application using HANA Studio
Steps to create complete application:
1.Create HANA XS Project as mentioned in Create Your First HANA XS Application using HANA Studio
2. Right click and click on New à Others à XS HTTP Destination Configuration. Specify the file name as “YahooHttpDestination”.
Note that HTTP destination have the file extension .xshttpdest
3. Copy paste the below code.
host = "download.finance.yahoo.com";
port = 80;
description = "my stock-price checker";
useSSL = false;
pathPrefix = "/d/quotes.csv?f=a";
authType = none;
useProxy = true;
proxyHost = "proxy";
proxyPort = 8080;
timeout = 0;
4. Create an XSJS file GetStockValue.xsjs and paste below code.
var stock = $.request.parameters.get("stock");
var amount = $.request.parameters.get("amount");
var dest = $.net.http.readDestination("http-destination", "YahooHttpDestination");
var client = new $.net.http.Client();
var req = new $.web.WebRequest($.net.http.GET, "&s=" + stock);
client.request(req, dest);
var response = client.getResponse();
var co = [],
he = [];
for (var c in response.cookies) {
co.push(response.cookies[c]);
}
for (var c in response.headers) {
he.push(response.headers[c]);
}
var body = undefined;
if (response.body) var body = response.body.asString();
$.response.contentType = "application/json";
var res = parseInt(response.body.asString()) * amount;
$.response.setBody(amount + " of your " + stock + " shares are worth: " + res);

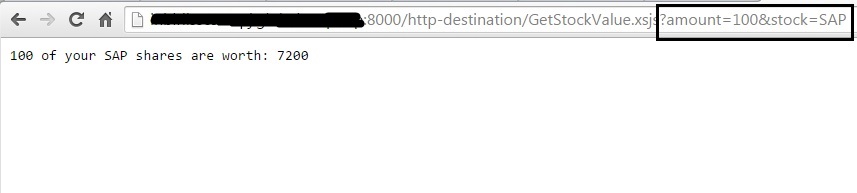

5. Run the XSJS service and pass query parameter as: ?amount=100&stock=SAP
Download Full Source Code:
Click here to download the full source code.
